ultrasonic transducers

We offer custom transducers for a wide range of applications and environments(air-coupled/underwater/direct-contact), covering frequency range from 50 kHz to 50 MHz and above.  Range of cable and housing  options are available to choose, in combination with customised PVdF or ceramic transducers, tailored to your specific needs. Explore some of our current standard products below...

PRODUCT portfolio

Short Leadtime Transducer

Suitable for immersion use

316 Stainless steel housing

Integral coaxial cable (1.5 m length) with BNC connector

PZT Piezoceramic active element (0.5 MHz to 7 MHz only)

  • Medium damping – moderate bandwidth
  • Impedance matched for use with 50 Ohm systems.

PVDF Piezopolymer active element (≥ 10 MHz)

  • High damping – broad bandwidth
  • Not impedance matched

Can be used in a pulse-echo mode

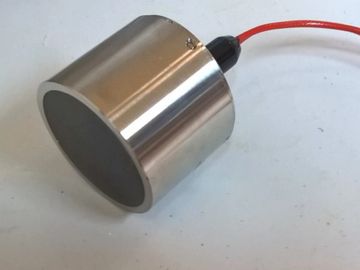

1-3 Piezo Composite Transducer

All our 1-3 piezo-composite transducers are bespoke; they are designed to meet the specific measurements requirements of each individual customer.

Sensor material : 1-3 Piezoelectric composite

Act element diameter: 20 mm to 67 mm

Nominal center freq: 150 kHz to 650 kHz

Typical -6 dB bandwidth : 25 to 60 % of centre frequency

Case material : 316L Stainless steel or polymer

Front face : Rho-C matched or rigid resin wear plate

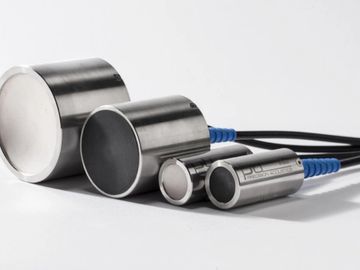

Piezo Ceramic Transducers

Centre frequency 0.5 MHz to 10 MHz.

-6 dB bandwidth (10% to 65% of centre

frequency, depending on design)

Active element diameter 5mm to 60 mm

Output impedance 50 Ω (± 10%)

Output power up to 120 W (depending on

design)

Designed for immersion use.

Focal length (if focused) 15 mm to

100 mm

A 1.5 metre co-axial cable with BNC

connector is supplied as standard. Other

options (e.g. UHF, SMA, MCX, LEMO etc) are available on request.

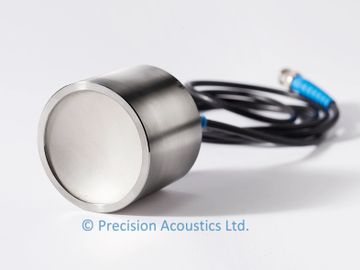

HIFU Transducers

High power acoustic output with tight

focal spot.

All devices (>1 MHz) produce focal

outputs greater than 1 kW/cm2.

Designed for immersion use.

Impedance matched to 50 Ω.

Impedance matching network is

integrated into case (no need for external

matching network).

A 1.5 metre co-axial cable (BNC

terminated) is supplied as standard but

other options are available on request.

Each device is supplied with in-house calibration certificate, transverse, axial beam profile, freq and power calibration.

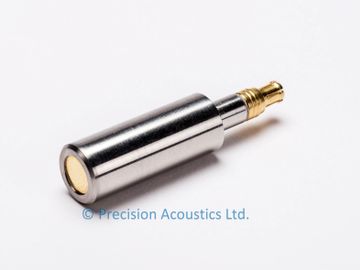

PVdF Transducers

Centre frequency 5 MHz to 50 MHz.

-6 dB bandwidth (40% to 110% of centre

frequency, depending on design)

Active element diameter 1mm to 60 mm

Focal length (if focussed) 3mm to 200mm

A 1.5 metre co-axial cable (BNC

terminated) is supplied as standard.

Other options (e.g. SMA, MCX, LEMO etc) are available on request.

Each transducer receives an in-house

calibration including frequency response

transverse beam profiles (and for

focussed probes, axial profile)

Designed for immersion use

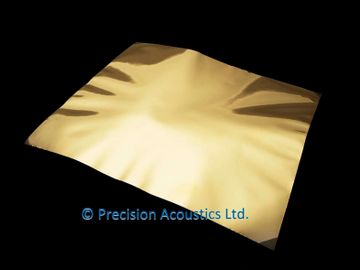

Piezo-Electric PVdF Materials

PVdF is one of the most widely known piezo polymers available.

PVdF exhibits strong piezo- and pyro-electric response and has an acoustic impedance that is much closer to water.
